| Name: | Air FFU | Material: | SS201,SUS304 |
|---|---|---|---|
| External Size: | 1175X575X350mm | Filter Size: | 1170X570X69mm |
| Air Flow: | 1000m³/h | Power Supply: | 123W |
| High Light: | air filter box,duct filter box |
||

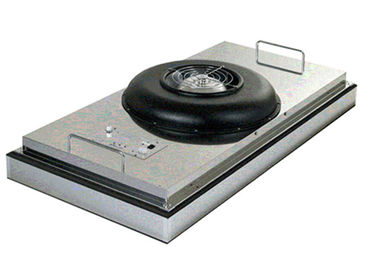

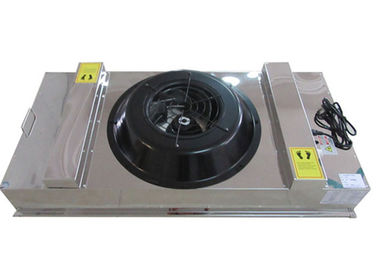

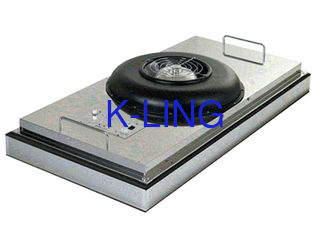

GMP Cleanroom Fan Powered Module FFU With EMB Fans Manufacturers
CUSTOMIZED DESIGN IS AVAILABLE
Introduction:
Fan Filter Unit (FFU) provides the micro-filtered airstream that controls particulate contamination in a cleanroom or laminar flow clean bench.
Our comprehensive line includes models based on High-Efficiency Particulate Air (HEPA) filters, rated 99.99% efficient @ 0.3 μm particles, and Ultra Low Penetration Air (ULPA) filters,
rated 99.999% efficient @ 0.12 μm particles. Select the lights and other ceiling grid accessories to complete your system.
Specifications:
Easy to Control
It is easy to achieve large-scale smart control via eLisa system, and every FFU is individually controlled and monitored by the central computer.
The eLisa system can also indicate the followings: operator logging, energy consumption analysis, diagnosis error messages and error localization, graphics, etc.
Lower Noise Level
This EC FFU is characterized with high efficiency, low noise, and low maintenance with a long life EC motor which can reduce the noise by 5 dBA compared with AC motor.
Lower Energy Consumption
EC motor is more energy saving than AC motor. This EC FFU has a 30~40% lower energy consumption than AC FFU.
Higher Total Static Pressure
The low-pressure drop of the HEPA/ULPA filter, in combined with the high total static pressure of the fan, provide an external static pressure of 50 to 150 Pa at rated airflow.
Lower Off-gassing Components
All components are low off-gassing to meet stringent requirements of specific industries. And PTFE is characterized for zero dissemination of chemical elements (Boron, phosphorus, sodium,
potassium, silicon, etc.)
Easy Installation
This product is designed to be easily set in place on ceiling grids without any hold-down clamping. When the filter is knife-edge, the unit can also be utilized in gel-seal ceiling grid.
Product Specifications:
| MODEL | KEL-FFU615 | KEL-FFU920 | KEL-FFU1175 | KEL-FFU1225 | |
|
External size (mm) (WXDXH) |
615X615X350 | 920x615x350 | 1175x575x350 | 1225X615X350 | |
| Material | Steel plate with painting/galvanized steel/aluminum/stainless steel | ||||
| Air flow(m3/h) | 600 | 800 | 1000 | 1200 | |
| Air velocity (m/s) | 0.3/0.35/0.4/0.45/0.5 | ||||
| Pressure(pa) | 97(10mmAq) | ||||
| Control system | 1: Power on/off 2: Control air speed up/down | ||||
| HEPA FILTER | Size(mm) | 610X610X69 | 915X610X69 | 1170x570x69 | 1220x610x69 |
| Efficiency(%) | 99.995% @ 0.3um | ||||
| Pressure (pa) | <220pa @ 0.45m/s | ||||
| Power supply | 220V/110V ,50/60HZ | ||||
| Power (w) | 115w | 115w | 123w | 172w | |
| Noise (Db) | 57 | 57 | 57 | 57 | |
