| Name: | Fan Powered Module | Material: | SS201,SUS304 |
|---|---|---|---|
| External Size: | 920X615X350mm | Filter Size: | 915X610X69mm |
| Pressure: | 180pa@0.45m/s | Power Supply: | 220V/110V,50/60Hz |
| High Light: | air filter box,duct filter box |
||

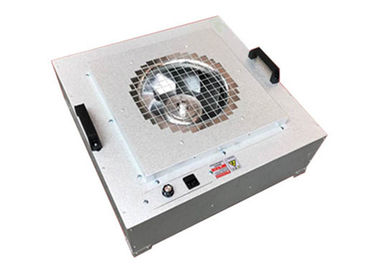

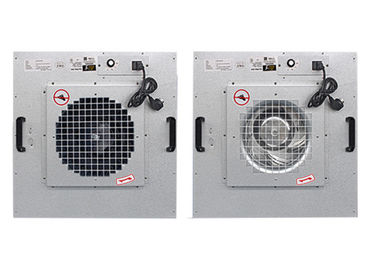

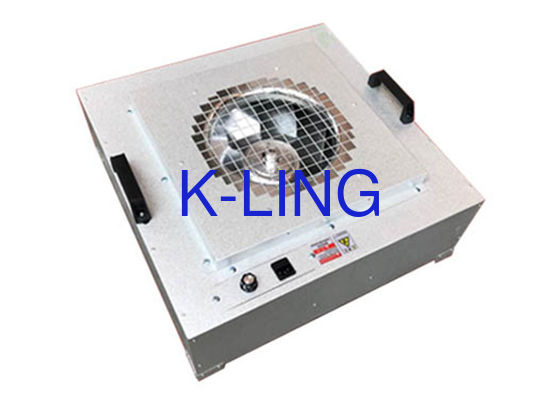

Chemical Workshop Fan Powered HEPA Clean Room Filter Low Noise DC Motorized
CUSTOMIZED DESIGN IS AVAILABLE
Description:
Fan Filter Unit (FFU) provides the micro-filtered airstream that controls particulate contamination in a cleanroom or laminar flow clean bench.
Our comprehensive line includes models based on High-Efficiency Particulate Air (HEPA) filters, rated 99.99% efficient @ 0.3 μm particles, and Ultra Low Penetration Air (ULPA) filters,
rated 99.999% efficient @ 0.12 μm particles. Select the lights and other ceiling grid accessories to complete your system.
This reliable, self-powered Fan Filter Unit provides a uniform flow of microfiltered air to meet cleanliness standards down to Class 10 (ISO 4).
Feature
1. EC FFU with HEPA/ULPA filter
2. Low energy consumption (30~40% lower energy consumption compared with AC type)
3. Low noise level (5 dBA lower noise level compared with AC type)
4. Convenient large scale smart control via eLisa system
5. Easy installation
Application
1. Semiconductor
2. Electronics
3. Food and baverage
4. Flat panel display
5. Biological pharmacy and other applications
Our Services
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
Warranty:
Our equipment is warranty for 2 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Product Specification:
| MODEL | KEL-FFU615 | KEL-FFU920 | KEL-FFU1175 | KEL-FFU1225 | |
|
External size (mm) (WXDXH) |
615X615X350 | 920x615x350 | 1175x575x350 | 1225X615X350 | |
| Material | Steel plate with painting/galvanized steel/aluminum/stainless steel | ||||
| Air flow(m3/h) | 600 | 800 | 1000 | 1200 | |
| Air velocity (m/s) | 0.3/0.35/0.4/0.45/0.5 | ||||
| Pressure(pa) | 97(10mmAq) | ||||
| Control system | 1: Power on/off 2: Control air speed up/down | ||||
| HEPA FILTER | Size(mm) | 610X610X69 | 915X610X69 | 1170x570x69 | 1220x610x69 |
| Efficiency(%) | 99.995% @ 0.3um | ||||
| Pressure (pa) | <220pa @ 0.45m/s | ||||
| Power supply | 220V/110V ,50/60HZ | ||||
| Power (w) | 115w | 115w | 123w | 172w | |
| Noise (Db) | 57 | 57 | 57 | 57 | |
