Product Details:
Payment & Shipping Terms:
|
| Name: | Fan Filter Units | Material: | SS304, SS201 |
|---|---|---|---|
| External Size: | 615X615X350mm | Filter Size: | 610X610X69mm |
| Fan Power: | 100W | Efficiency: | 99.99%@0.3 Um |
| High Light: | air filter box,duct filter box |
||

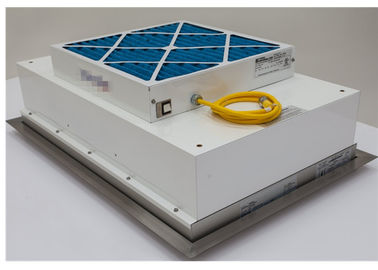

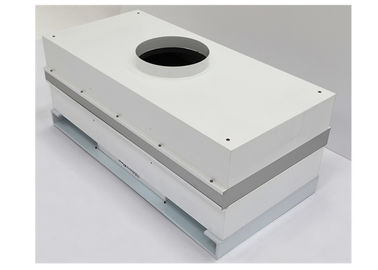

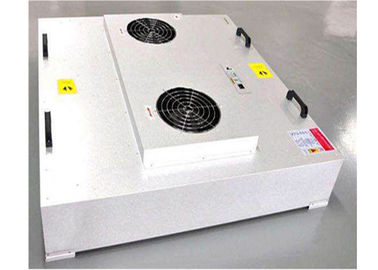

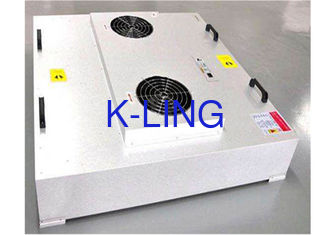

GMP Workshop Cleanroom Large Air Volume Fan Filter Unit Powered EBM Fan
CUSTOMIZED DESIGN IS AVAILABLE
Introduction:
Clean room HEPA ceiling Modules filters Unit with fan is type of unit used for filtering laminar air and supplying clean air.
FFU can be used stand alone or installed modularly. FFU is the core when making clean room equipment for a given space including clean booth, clean bench and clean room assembly.
Features:
The master switch inner set with insurance and indicator light
The control mode is flexible, can be three or five air velocity speed adjustment
Abnormal indicator light to understand the operation state of the equipment
FFU is a type of unit used for filtering laminar air and supplying clean air.
FFU can be standalone or installed modularly.
FFU is the core when making clean room of different classes or manufacturing purification equipments for a given space including clean booth, clean bench and clean room assembly.
Options available:
ULPA filter (99.9995 @0.1μm)
stainless steel or AL case
super thin design
other requirements
Specification:
| MODEL | KEL-FFU615 | KEL-FFU920 | KEL-FFU1175 | KEL-FFU1225 | |
|
External size (mm) (WXDXH) |
615X615X350 | 920x615x350 | 1175x575x350 | 1225X615X350 | |
| Material | Steel plate with painting/galvanized steel/aluminum/stainless steel | ||||
| Air flow(m3/h) | 600 | 800 | 1000 | 1200 | |
| Air velocity (m/s) | 0.3/0.35/0.4/0.45/0.5 | ||||
| Pressure(pa) | 97(10mmAq) | ||||
| Control system | 1: Power on/off 2: Control air speed up/down | ||||
| HEPA FILTER | Size(mm) | 610X610X69 | 915X610X69 | 1170x570x69 | 1220x610x69 |
| Efficiency(%) | 99.995% @ 0.3um | ||||
| Pressure (pa) | <220pa @ 0.45m/s | ||||
| Power supply | 220V/110V ,50/60HZ | ||||
| Power (w) | 115w | 115w | 123w | 172w | |
| Noise (Db) | 57 | 57 | 57 | 57 | |
Basic Info:
| Product Name | Fan Air Clean Unit/Large Air Volume Fan Filter Unit/fan powered module |
| Brand | OEM/ODM |
| Material | SUS304,SUS201,SS304, Cold rolled plate |
| Size | Customized |
| MOQ | 1 SET |
| Delivery Time | 7-15 working days |
| Shipping Port | Guangzhou, Shenzhen, Shanghai |
| Warranty | 2 years |
| Packing | Polywood packing |
| Payment | T/T,L/C, West Union, D/P, Cash |
