| Name: | Clean Room FFU Air Purifier | Material: | Cold-rolled Plate |
|---|---|---|---|
| External Size: | 1175X575X350mm | Air Flow: | 1000m³/h |
| Contrrol System: | Power On/off, Control Speed Up/Down | Fan Power: | 123W |
| High Light: | air filter box,duct filter box |
||

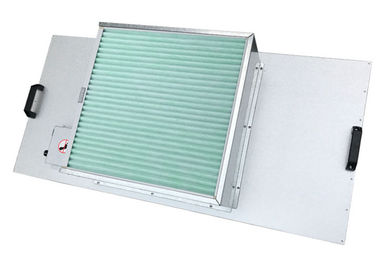

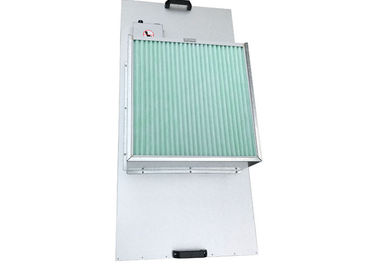

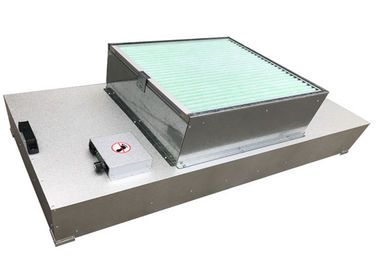

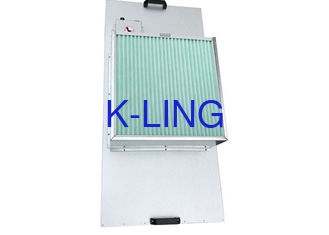

Biological Engineering Cleanroom Fan Powered Module FFU Low Noise
CUSTOMIZED DESIGN IS AVAILABLE
Description:
Fan filter unit FFU with high efficiency 99.99% hepa filter
FFU is a type of unit used for filtering laminar air and supplying clean air.
FFU can be standalone or installed modularly.
FFU is the core when making clean room of different classes or manufacturing purification equipments for a given space including clean booth, clean bench and clean room assembly.
Feature:
1.Low consumption, super performance and low operation cost
Direct drive backward inclined fan, high efficiency, low noise,more endurable, more energy-saving
2.Perfect construction, low profile and balanced air velocity
Scientific air passage design, low resistance, low noise, save space
3.Flexible design to suit various needs
We are equipped with great capabilities of customized design to suit various needs. External size can be altered to suit
various type of GRID. Also, we provide professional solutions in respond to changes of external material case, special
power supply,or changes of fan configuration.
4.Safe and operation friendly
FFU is able to support high-intensity box and ensures the safety of staff for installation and maintenance.
Remote monitoring and adjustment are available and it is easy to operate.
5.Multi-level protective devices
FFU is equipped with over-current relay, motor protective device, fault indicator and fault signal circuit.
Thermal protector, fuse and motor breaker and such can be applied upon request.
Product Specification:
| MODEL | KEL-FFU615 | KEL-FFU920 | KEL-FFU1175 | KEL-FFU1225 | |
|
External size (mm) (WXDXH) |
615X615X350 | 920x615x350 | 1175x575x350 | 1225X615X350 | |
| Material | Steel plate with painting/galvanized steel/aluminum/stainless steel | ||||
| Air flow(m3/h) | 600 | 800 | 1000 | 1200 | |
| Air velocity (m/s) | 0.3/0.35/0.4/0.45/0.5 | ||||
| Pressure(pa) | 97(10mmAq) | ||||
| Control system | 1: Power on/off 2: Control air speed up/down | ||||
| HEPA FILTER | Size(mm) | 610X610X69 | 915X610X69 | 1170x570x69 | 1220x610x69 |
| Efficiency(%) | 99.995% @ 0.3um | ||||
| Pressure (pa) | <220pa @ 0.45m/s | ||||
| Power supply | 220V/110V ,50/60HZ | ||||
| Power (w) | 115w | 115w | 123w | 172w | |
| Noise (Db) | 57 | 57 | 57 | 57 | |
Basic Info:
| Product Name | Box Filter/Fan Filter Unit/Fan Filter Units/FFU |
| Brand | OEM/ODM |
| Material | SUS304,SUS201,SS304, Cold rolled plate |
| Size | Customized |
| MOQ | 1 SET |
| Delivery Time | 7-15 working days |
| Shipping Port | Guangzhou, Shenzhen, Shanghai |
| Warranty | 2 years |
| Packing | Polywood packing |
| Payment | T/T,L/C, West Union, D/P, Cash |
