Product Details:
Payment & Shipping Terms:
|
| Name: | Hepa Fan Filter Unit | Material: | SS304 |
|---|---|---|---|
| External Size: | 920X615X350mm | Air Flow: | 900m³/h |
| Air Velocity: | 0.3-0.6m/S | Power Supply: | 220V |
| High Light: | air filter box,duct filter box |
||

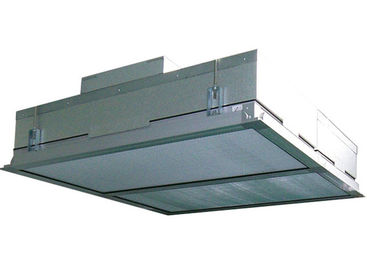

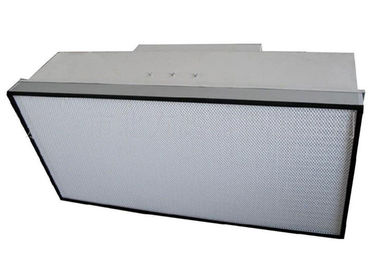

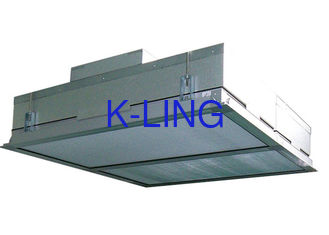

Semi-conduction Workshop Cleanroom Large Air Volume Fan Filter Unit
CUSTOMIZED DESIGN IS AVAILABLE
Introduction:
It is designed to provide filtered laminar air flow over a specific area, the unit integrates a high efficiency fan together with a HEPA/ULPA Filter. the FFU in contaminated air from the top of the module and exhausts filtered clean air vertically in a unidirectional air stream at its base.
Applications: conventional clean room construction, soft wall or hard wall clean room,
Operating features:
1: Light weight, corrosion-resistance construction is completely smooth and clean room –compatible.
2: Proprietary construction technology creates better air flow uniformity across the entire filter face for superior laminar flow band protection.
3: Standard blower speed controller allows for easy adjusting of the FFU speed controller. equipped with overheating protection inside.
4:it is operates at low noise and power consumption levels
Warranty:
Our equipment is warranty for 2 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Basic Info:
| Product Name | Hepa Fan Filter Unit/Clean Room FFU Air Purifier/Hepa Filter FFU Air Purifier |
| Brand | OEM/ODM |
| Material | SUS304,SUS201,SS304, Cold rolled plate |
| Size | Customized |
| MOQ | 1 SET |
| Delivery Time | 7-15 working days |
| Shipping Port | Guangzhou, Shenzhen, Shanghai |
| Warranty | 2 years |
| Packing | Polywood packing |
| Payment | T/T,L/C, West Union, D/P, Cash |
Specifications:
| MODEL | KEL-FFU615 | KEL-FFU920 | KEL-FFU1175 | KEL-FFU1225 | |
|
External size (mm) (WXDXH) |
615X615X350 | 920x615x350 | 1175x575x350 | 1225X615X350 | |
| Material | Steel plate with painting/galvanized steel/aluminum/stainless steel | ||||
| Air flow(m3/h) | 600 | 800 | 1000 | 1200 | |
| Air velocity (m/s) | 0.3/0.35/0.4/0.45/0.5 | ||||
| Pressure(pa) | 97(10mmAq) | ||||
| Control system | 1: Power on/off 2: Control air speed up/down | ||||
| HEPA FILTER | Size(mm) | 610X610X69 | 915X610X69 | 1170x570x69 | 1220x610x69 |
| Efficiency(%) | 99.995% @ 0.3um | ||||
| Pressure (pa) | <220pa @ 0.45m/s | ||||
| Power supply | 220V/110V ,50/60HZ | ||||
| Power (w) | 115w | 115w | 123w | 172w | |
| Noise (Db) | 57 | 57 | 57 | 57 | |
