| Name: | Cleanroom Fan Air Clean Unit | Material: | SUS304 |
|---|---|---|---|
| External Size: | 615X615X350mm | Air Flow: | 600m³/h |
| Air Velocity: | 0.3-0.6m/S | Pressure(pa): | 97(10mm Aq) |
| High Light: | air filter box,duct filter box |
||

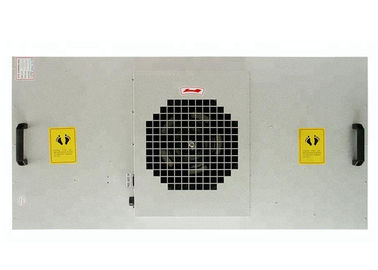

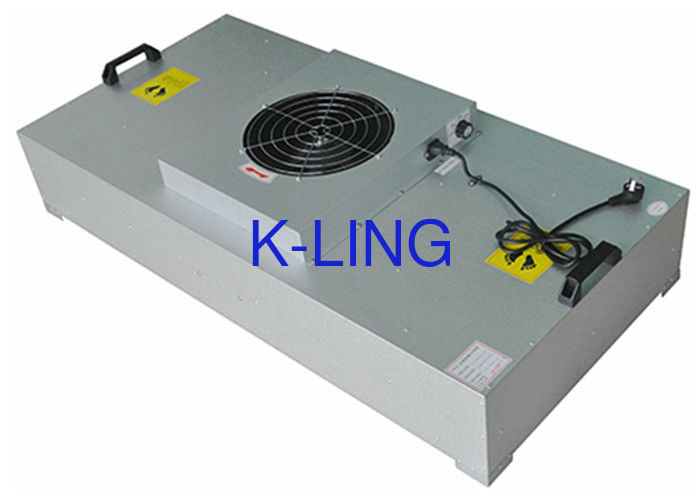

Cosmetic Industry Fan Air Clean Unit FFU Powered EBM Fan Manufacturer
CUSTOMIZED DESIGN IS AVAILABLE
Product Description
Hepa Fan Filter Unit which draws in contaminated air from the top of the module,
and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base,
is a self-contained fan and filter module for cleanroom applications.
Application: FFU’s are commonly used in the construction of Class 100 to Class 100,000 cleanrooms,
even forming ultra clean line, clean closet and etc…
Features :
1.Nice appearance , human centered design--Adding stainless handle, easy installation and delivery, and perpendicular design.
2.High performance and low noise fans--Adopting Energy-saving Multi-blade turbine fan, lower noise,
Pressure spreads evenly, stable air velocity, low consumption, low running cost, service life can reach to longer than 80 thousand hours.
3.Light, thin shape--Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available.
4.Flexible, diversified design--Except for standard items, custom made FFU is available, such changings as filter nets, the materials of shell and etc...
5.Concerning, convenient design---Pedals are designed in the body, which makes it convenient to install and repair.
6.Premium Current-averaging design of the inside--Ensures deviation of the blowing side lower than ±10%.
Applications: conventional clean room construction, soft wall or hard wall clean room,
Technical Parameter:
| MODEL | KEL-FFU615 | KEL-FFU920 | KEL-FFU1175 | KEL-FFU1225 | |
|
External size (mm) (WXDXH) |
615X615X350 | 920x615x350 | 1175x575x350 | 1225X615X350 | |
| Material | Steel plate with painting/galvanized steel/aluminum/stainless steel | ||||
| Air flow(m3/h) | 600 | 800 | 1000 | 1200 | |
| Air velocity (m/s) | 0.3/0.35/0.4/0.45/0.5 | ||||
| Pressure(pa) | 97(10mmAq) | ||||
| Control system | 1: Power on/off 2: Control air speed up/down | ||||
| HEPA FILTER | Size(mm) | 610X610X69 | 915X610X69 | 1170x570x69 | 1220x610x69 |
| Efficiency(%) | 99.995% @ 0.3um | ||||
| Pressure (pa) | <220pa @ 0.45m/s | ||||
| Power supply | 220V/110V ,50/60HZ | ||||
| Power (w) | 115w | 115w | 123w | 172w | |
| Noise (Db) | 57 | 57 | 57 | 57 | |
