Payment & Shipping Terms:
|Name:||Downflow Booth||Material:||Cold-rolled Plate, Sus304|
|Airflow Velocity:||0.2-0.6 M/S||Filters:||G4,F8.H13,H14 And PLF Screens|
|Start Port:||Guangzhou, Shenzhen, Shanghai||Warranty:||2 Years|

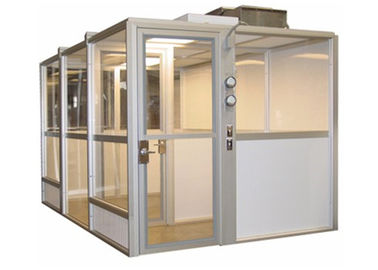

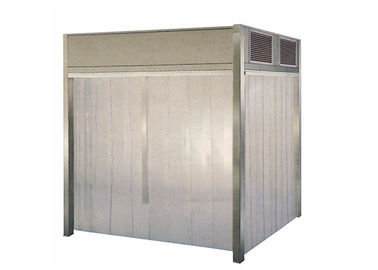

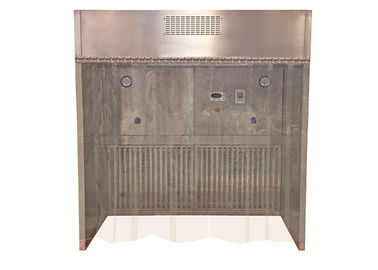

SUS304 Negative Pressure Laminar flow Downflow Booth For Pharmaceutical GMP Workshop
CUSTOMIZED DESIGN IS AVAILABLE
Sampling Room is a personnel safety and protection facility which shall control the polluted air emission through the special filter unit to keep the operator or environment away from its hazards. It can provide an environment for powder weighing. Package and dust spills control and to prevent dust inhalation and avoid cross-contamination fo dust.
1. Automatic changeable frequency system monitors the air velocity to ensure its stability in the working area.
2. Differential pressure gauge is equipped to real-time monitor the filters.
3. Unique designed air duct effectively controls the noise.
4: Magnehelic Gauges provide convenient and reliable means for monitoring gauges air flow and filter condition.
5: Containment performance verified according to the ISPE good practice guide, assessing the particulate containment performance of pharmaceutical equipment.
Using Environment and Conditions:
Temperature: 5 ℃ -40 ℃
Relative humidity: less than 85%
Atmospheric pressure: 86kPa-106kPa
Power supply: AC220V, single phase, 50Hz.
External size (mm)
Work zone (mm)
|Purification rank||Class 100(ISO5)|
|Air speed||0.45m/s +_20%|
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)
2: External and internal side is steel with power coated. (T=1.2/1.5mm)
1: Air Speed according to frequency converter control .
2: Gel Sealant High Efficiency HEPA air filter for high purification rank
3: Wind speed detection, Constant temperature and constant humidity
Detector according to client request install
4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time
5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .
6; GMP Modular design with minimized joints and seams.

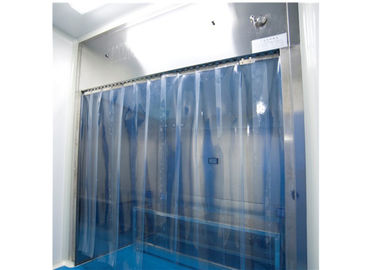

7: PVC strip curtains available
8; Energy Efficient high air volume fan to minimize operating cost,
|Filter step||3 Step|
|HEPA filter||99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter|
|Secondary filter||F8 pocket air filter|
|Pre-filter Efficiency||G4 Z-Line panel air filter|
|Power supply||380V/50HZ OR 220V/50HZ|
|Packing material||Standard Export Poly wood Packing(Fumigant free material)|
