|Name:||Sampling Booth||Material:||Cold-rolled Plate, Ss304|
|Airflow Velocity:||0.2-0.6 M/S||Filters:||G4,F8.H13,H14 And PLF Screens|
|Start Port:||Guangzhou, Shenzhen, Shanghai||Warranty:||2 Years|

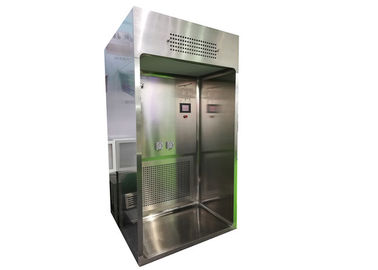

SUS304 Negative Pressure Laminar flow Sampling Booth For Pharmaceutical GMP Workshop
CUSTOMIZED DESIGN IS AVAILABLE
Clean booth is a kind of air purifying equipment providing partial high clean environment,
it’s the easiest and fastest way to build a simple clean room. Equipped with a lot of clean level and space collocation,
it can be designed as request. Main characteristics: simple use, good flexibility, easy installation, short construction time, and movable.
It can be installed in part of clean room of general level which requires high cleanliness to save cost.
What you can get from us?
1.Immediately responses for your inquiry and response saving your time, update your project processing.
2.Professional design team matches all your ideas;
3.Over 10years cleanroom, laboratory furniture and air filters producing experience guarantee the quality;
4.Strictly factory testing take out your troubles in advance;
5.ISO, CE, UL,TUV, SGS testing Certificates helped your business;
6.With 18monthes Warranty card service your business in good way;
7.Own the CNC machine, class 10000 clean room workshop, spray booth, 1300*1300 non-gap Mini-plated HEPA filter producing machine as well with over 5years clean room producing experience workers keep well each your orders.
8.Completed of set documents issued with final products help you easy with our products.
External size (mm)
Work zone (mm)
|Purification rank||Class 100(ISO5)|
|Air speed||0.45m/s +_20%|
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)
2: External and internal side is steel with power coated. (T=1.2/1.5mm)
1: Air Speed according to frequency converter control .
2: Gel Sealant High Efficiency HEPA air filter for high purification rank
3: Wind speed detection, Constant temperature and constant humidity
Detector according to client request install
4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time
5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .
6; GMP Modular design with minimized joints and seams.
7: PVC strip curtains available
8; Energy Efficient high air volume fan to minimize operating cost,
|Filter step||3 Step|
|HEPA filter||99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter|
|Secondary filter||F8 pocket air filter|
|Pre-filter Efficiency||G4 Z-Line panel air filter|
|Power supply||380V/50HZ OR 220V/50HZ|
|Packing material||Standard Export Poly wood Packing(Fumigant free material)|
