Payment & Shipping Terms:
|Name:||Dispensing Booth||Material:||Cold-rolled Plate, Ss304|
|Airflow Velocity:||0.2-0.6 M/S||Filters:||G4,F8.H13,H14 And PLF Screens|
|Start Port:||Guangzhou, Shenzhen, Shanghai||Warranty:||2 Years|

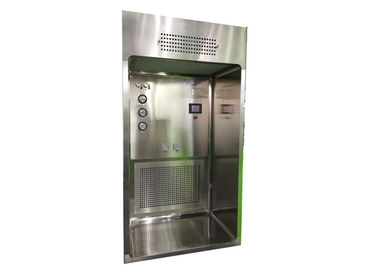

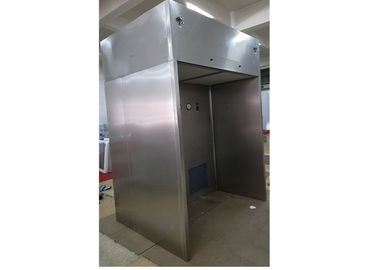

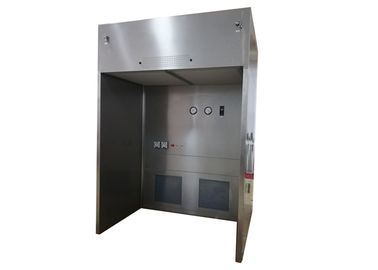

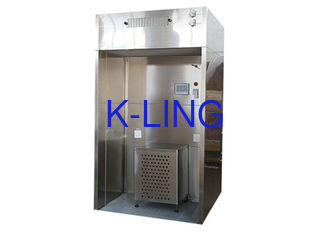

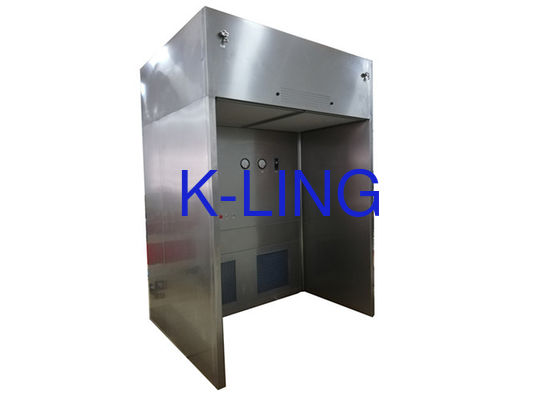

SUS304 Negative Pressure Laminar flow Dispensing Booth For Pharmaceutical GMP Workshop
CUSTOMIZED DESIGN IS AVAILABLE
Sampling Room is a personnel safety and protection facility which shall control the polluted air emission through the special filter unit to keep the operator or environment away from its hazards. It can provide an environment for powder weighing. Package and dust spills control and to prevent dust inhalation and avoid cross-contamination fo dust.
1. Automatic changeable frequency system monitors the air velocity to ensure its stability in the working area.
2. Differential pressure gauge is equipped to real-time monitor the filters.
3. Unique designed air duct effectively controls the noise.
4. Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
5. Intelligent control mode and alarm system ensure the reliability of running.
6. Smooth transitions of wall and ground can eliminate the blind angle.
7. Humanized design simplifies the operation of all kinds of filters.
External size (mm)
Work zone (mm)
|Purification rank||Class 100(ISO5)|
|Air speed||0.45m/s +_20%|
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)
2: External and internal side is steel with power coated. (T=1.2/1.5mm)
1: Air Speed according to frequency converter control .
2: Gel Sealant High Efficiency HEPA air filter for high purification rank
3: Wind speed detection, Constant temperature and constant humidity
Detector according to client request install
4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time
5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .
6; GMP Modular design with minimized joints and seams.
7: PVC strip curtains available
8; Energy Efficient high air volume fan to minimize operating cost,
|Filter step||3 Step|
|HEPA filter||99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter|
|Secondary filter||F8 pocket air filter|
|Pre-filter Efficiency||G4 Z-Line panel air filter|
|Power supply||380V/50HZ OR 220V/50HZ|
|Packing material||Standard Export Poly wood Packing(Fumigant free material)|
Dispensing booth is designed such that through the different configurations it can be applied but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .
