KeLing Purification Technology Company Limited
Advanced. High-Qulity. Reasonable.
Payment & Shipping Terms:
|Name:||Dispensing DownFlow Booth||Material:||SS316|
|Airflow Velocity:||0.45m/S||Filters:||G4,F8.H13,H14 And PLF Screens|
|Start Port:||Guangzhou, Shenzhen, Shanghai||Hepa Filter:||email@example.com|
|After-sales Service Provided:||Engineers Available To Serivce Machinery Overseas|
CUSTOMIZED DESIGN IS AVAILABLE

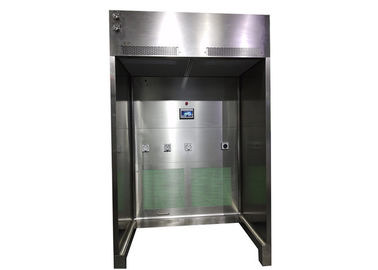

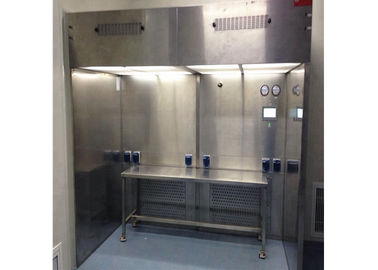

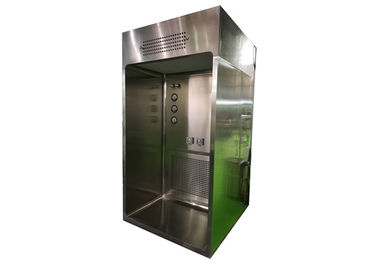

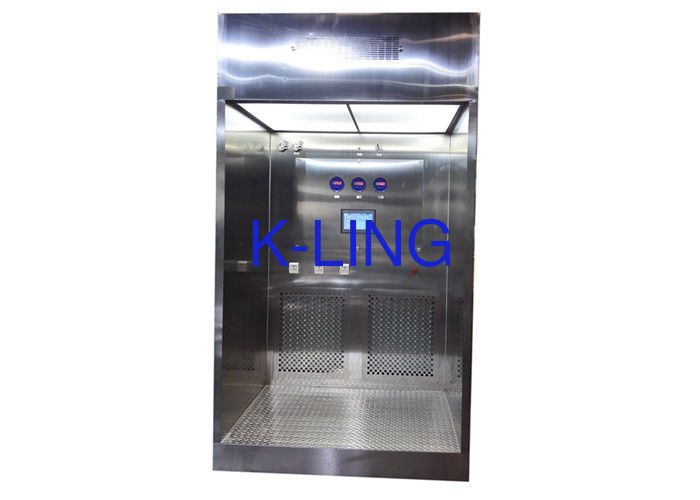

Dispensing down flow booth is used to perform dispensing operations in pharmaceutical industries.
The equipment serve as safety equipment to operator doing the dispensing operation.
In dispensing booth big packing of dangerous chemicals are dispensed to small packing by operator under class 100 environment and 10% exhaust system adopted.
Dispensing unit is always a negative pressure unit and air is circulated from outside of the equipment.
Hence during sucked at prefilter given at the bottom of the cabinet so that chemical don’t affect the operator.
Dispensing booth consists of HEPA flter, prefilter, echaust filter with efficiency of 99.997% down to 0.3um at rated air flow and pressure drop,
velocity of 0.45M/S is adjusted to get laminar flow in the equipment .
System is equipped with inbuilt motor blower and are dynamically balanced for low noise and vierations, with pre filter at suction ,
10% air is discharged through exhaust filter ro generate negative pressure in equipment.
1. It can be used singly or combined.
2. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost and fast effect and can be easily installed.
3. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement( Universal wheel can be installed)
4. Customized design is welcome.
|Product Name||Dispensing DownFlow Booth|
|Material||SUS304,SUS201,SS304, Cold rolled plate|
|Delivery Time||7-15 working days|
|Shipping Port||Guangzhou, Shenzhen, Shanghai|
|Payment||T/T,L/C, West Union, D/P, Cash|
External size (mm)
Work zone (mm)
|Purification rank||Class 100(ISO5)|
|Air speed||0.45m/s +_20%|
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)
2: External and internal side is steel with power coated. (T=1.2/1.5mm)
1: Air Speed according to frequency converter control .
2: Gel Sealant High Efficiency HEPA air filter for high purification rank
3: Wind speed detection, Constant temperature and constant humidity
Detector according to client request install
4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time
5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .
6; GMP Modular design with minimized joints and seams.
7: PVC strip curtains available
8; Energy Efficient high air volume fan to minimize operating cost,
|Filter step||3 Step|
|HEPA filter||99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter|
|Secondary filter||F8 pocket air filter|
|Pre-filter Efficiency||G4 Z-Line panel air filter|
|Power supply||380V/50HZ OR 220V/50HZ|
|Packing material||Standard Export Poly wood Packing(Fumigant free material)|
