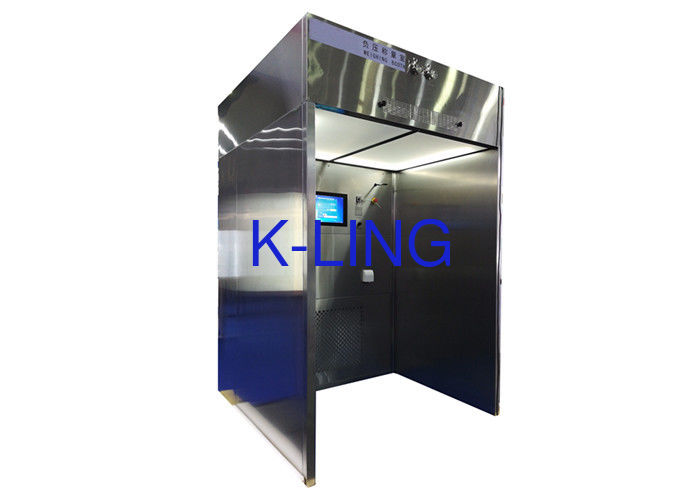

SUS304 Negative Pressure Laminar flow Downflow Containment Booths For Raw Material Cleanroom Equipment
CUSTOMIZED DESIGN IS AVAILABLE
Introduction :
The center weight room is one kind of professional working room which specially used in sampling,
weighting and analysis industry, it can control the working area powder to prohibit them off the working room,
and it is special equipment to control the powder floating, protect operators not breathe the operated powder.
Weight room is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds.
It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.
Dispensing booth is also called sampling booth or weighing booth.
Products Parameter:
| MODEL | KEL-DB1000 | KEL-DB1500 | KEL-DB2000 |
|
External size (mm) (W*D*H) |
1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
|
Work zone (mm) (W*D*H) |
1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
| Purification rank | Class 100(ISO5) | ||
| Air speed | 0.45m/s +_20% | ||
|
Material (Option) |
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) |
||
| Control system |
1: Air Speed according to frequency converter control . 2: Gel Sealant High Efficiency HEPA air filter for high purification rank 3: Wind speed detection, Constant temperature and constant humidity Detector according to client request install 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized joints and seams. 7: PVC strip curtains available 8; Energy Efficient high air volume fan to minimize operating cost, |
||
| Noise level(dB) | <65dB | ||
| Filter step | 3 Step | ||
| HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
| Secondary filter | F8 pocket air filter | ||
| Pre-filter Efficiency | G4 Z-Line panel air filter | ||
| Power supply | 380V/50HZ OR 220V/50HZ | ||
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Main Application:
Cleanroom sampling /weighing/dispensing booth is mainly used in pharmaceutical clean room,electronic clean room,
hospital operating room,food clean room for weighing and dispensing of medicines,fine dust or reagent.
It can control dust flying or reagent overflowing to prevent operators from inhalling,and avoid cross-contamination of different materials and protect environment and operators.
Feature:
Purification rank:class 100
Three step filtration system
Fluid seal mini-pleats system
GMP standatd with DOP port testing
Air speed:0.3-0.6m/s
Power:380V/60HZ or 415V/50HZ or 220V single phase 220V 50HZ(according to customer)
99.995% GMP standard weighing room,dispensing booth with air speed adjustable.
