Features: | SUS304 Dynamic Cleanroom Pass Thru Box | Name: | SUS304 Dynamic Cleanroom Pass Thru Box |
---|---|---|---|
Material: | Stainless Steel, Cold-rolled Plate | Lock: | Electromagnetic Interlock |
Size: | Customized Size | Filter: | HEPA Filter H13 / H14 |
Start Port: | Guangzhou, Shenzhen,Shanghai | Warranty: | 2 Years |
High Light: | clean room pass through box,Pass Thru Box |

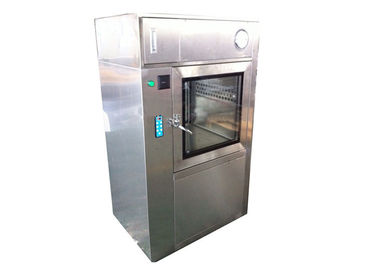

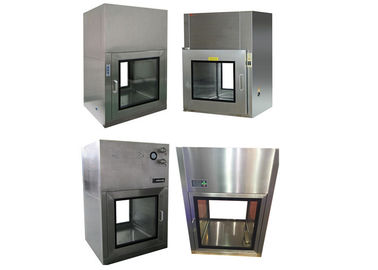

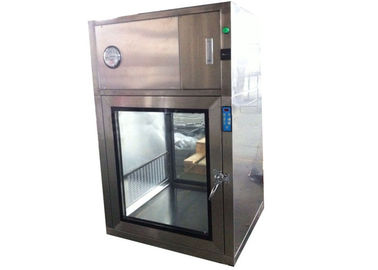

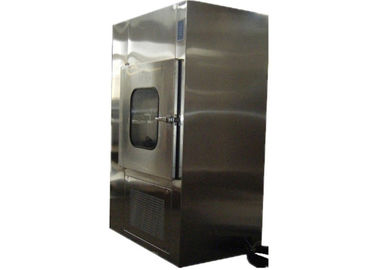

Pharmaceutical GMP Workshop Customized SUS304 Dynamic Cleanroom Pass Thru Box
CUSTOMIZED DESIGN IS AVAILABLE
Product features
1.Material:SS 304 Or SS 201
2.On both sides of the gate has a mechanical interlock or electrical interlock device, make sure not in an open position at the same time on both sides of the door.
3.The outlet of the wind speed up to more than 20 s.
4.Adopts hepa filter with separators, the filtration efficiency is: 99.99%, to ensure that the level of purification.
5.Using EVA sealing material, sealing performance is high.
6.Imported electronic components, reliable in performance.
Basic Info:
Product Name | Pass Box/ Pass Thru/ Pass Thru Box |
Brand | OEM/ODM |
Material | SUS304,SUS201,SS304, Cold rolled plate |
Size | Customized |
MOQ | 1 SET |
Delivery Time | 7-15 working days |
Shipping Port | Guangzhou, Shenzhen, Shanghai |
Warranty | 2 years |
Packing | Polywood packing |
Payment | T/T,L/C, West Union, D/P, Cash |
Products Parameter:
MODEL | KEL-DPB500 | KEL-DPB600 | KEL-DPB700 |
External size (mm) (W*D*H) |
700x570x1050mm | 800x670x1150mm | 900x770x1250mm |
Work zone (mm) (W*D*H) |
500x500x500mm | 600x600x600mm | 700x700x700mm |
Purification rank | Class 100 | ||
Material (Option) |
1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm) |
||
Control system |
1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation . 3: Double layer vacuum glass have very good appearance 4: Software computer interlocking door with long time using life 5: Air speed is 0.45m/s adjustable |
||
UV light | 1 PCS | ||
Power supply | 220v/50HZ | ||
packing size (mm) | 800x870x1300mm | 1000x870x1400mm | 1100x970x1500mm |
Packing material | Standard Export Poly wood Packing(Fumigant free material) |
Wall-Mounted HEPA Filtered Pass-Thrus
The Wall Mounted HEPA filtered Pass Thru Air Lock Cleanroom Entry System is for the efficient transfer of parts and equipment in and out of a cleanroom while maintaining control of particulates in the cleanroom environment.
The CAP18WHF HEPA filter Pass Thru exceeds the U.S. Department of Energy High Energy Particle Arrestance (HEPA) standard by removing at least 99.99 percent of airborne particles 0.3 micrometers (μm) in diameter.
An internal motorized HEPA filter unit inside the CAP18WHF cabinet recirculates air through perforations in the cabinet’s inner sides.
Like all CAP18 Wall Mounted Pass Thrus, the CAP18WHF has a double wall stainless steel cabinet within a heavy duty welded stainless steel shell.
The interior sides are smooth, durable and easy to clean.
Doors are attached with stainless steel flush-mounted continuous hinges and feature a generous sized, tempered safety glass window for maximum visibility and easy cleaning.
Doors are secured with stainless steel heavy duty over center compression latch that tightly seals against closed-cell PVC door gaskets, reducing the possibility of air leaks.
Mechanical door interlocks with 90 degree T-handle turn latches are optionally available to prevent both doors from being opened at the same time,
maintaining the air pressure of the cleanroom.The superior engineering of the CAP18WHF design provides a rigid structure that can be mounted flush against existing walls,
or center mounted with optional stainless steel mounting frames.
This combination of high-quality construction, innovative design, and HEPA air filtering makes the Pass-Thru the preferred solution for maintaining the highest levels of air particle control in cleanrooms.
Features
a.Formed and stitch-welded type 304 #4 finish stainless steel construction
b.120 Volt 60Hz 0.83 Amp motorized HEPA filter unit
c.375 CFM air flow at 110 ft/min
d.Perforated inner sides for air recirculation
e.Stainless steel continuous flush-mount hinges
f.Closed-cell PVC foam door gaskets
g.Clear tempered safety glass viewing windows
h.Type 316 stainless steel lever compression door latches
i.Mechanical Interlock with type 316 Stainless Steel handles
j.Maximum interior width: 42 inches
k.8 Piece Stainless Steel Mounting Frame
