Product Details:
Payment & Shipping Terms:
|
| Features: | Dynamic Cleanroom Pass Thru | Name: | Dynamic Cleanroom Pass Thru |
|---|---|---|---|
| Material: | Stainless Steel, Cold-rolled Plate | Lock: | Electromagnetic Interlock |
| Size: | Customized Size | Filter: | Hepa Filter H13 / H14 |
| Start Port: | Guangzhou, Shenzhen | Warranty: | 2 Years |
| High Light: | clean room pass through box,Pass Thru Box |
||

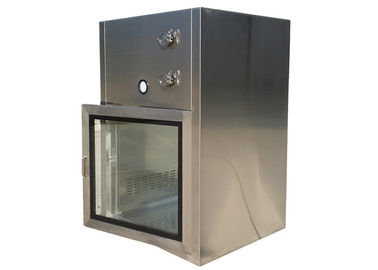

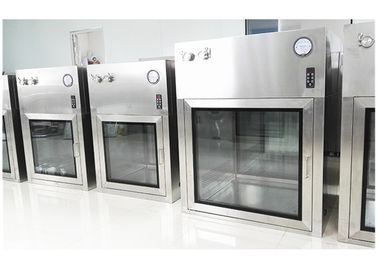

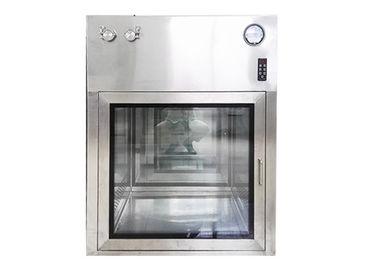

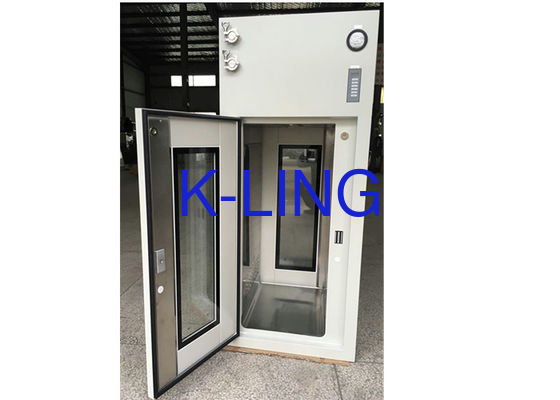

Pharmaceutical GMP Workshop Customized SUS201 Dynamic Cleanroom Pass Thru
CUSTOMIZED DESIGN IS AVAILABLE
Wall-Mounted Lead Lined Pass-Thrus
The Wall Mounted Lead Lined Pass Thru airlock cleanroom entry system is designed forthose cleanrooms where radiation protection is required for personnel.
The KEL-PB401 is designedwith a 1/4 inch thick QQ-L-201F Certified Grade B lead sheet lining, and lead glass viewing windows forradiation shielding for those specialized cleanroom needs.
As with all CAP Pass Thrus, the KEL-PB401 has an innovative double wall design, stainless steel integ-rity,
and the solid construction of formed and stitch-welded stainless steel.Doors are secured with heavy duty over center stainless steel Compression Lever Latches that tightlyseal.
Mechanical interlocks prevent air depressurization from both doors from being opened at thesame time.
The doors feature clear lead glass windows that provide radiation protection of 3mm leadequivalency and 200kV X-Ray peak voltage rating.
The superior engineering of the KEL-PB401 design and stainless steel construction means maximumvalue, flexibility and ease of cleaning and maintenance.
The CAP18WLL Pass Through maximizes radia-tion protection for personnel, and its elegant look upgrades the appearance of any cleanroom.
Features
Formed and stitch-welded type 304 #4 finish stainless steel construction
Stainless steel encapsulates 1/4 inch thick QQ-L-201F Certified Grade B lead sheet
Clear lead glass windows with 3mm lead equivalency and 200kV X-Ray peak voltage rating
Mechanical Interlock with type 316 Stainless Steel handles
Type 316 stainless steel lever compression door latches
8 Piece Stainless Steel Mounting Frame
Products Parameter:
| MODEL | KEL-DPB500 | KEL-DPB600 | KEL-DPB700 |
|
External size (mm) (W*D*H) |
700x570x1050mm | 800x670x1150mm | 900x770x1250mm |
|
Work zone (mm) (W*D*H) |
500x500x500mm | 600x600x600mm | 700x700x700mm |
| Purification rank | Class 100 | ||
|
Material (Option) |
1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm) |
||
| Control system |

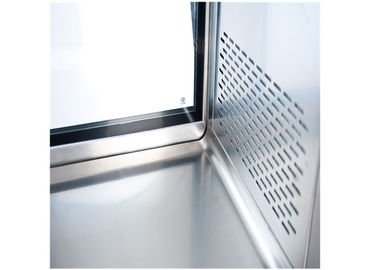

1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation . 3: Double layer vacuum glass have very good appearance 4: Software computer interlocking door with long time using life 5: Air speed is 0.45m/s adjustable |
||
| UV light | 1 PC | ||
| Power supply | 220v/50HZ | ||
| packing size (mm) | 800x870x1300mm | 1000x870x1400mm | 1100x970x1500mm |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Warranty:
Our equipment is warranty for 2 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
