Payment & Shipping Terms:
|Features:||Static Cleanroom Pass Thru Box||Name:||Static Cleanroom Pass Thru Box|
|Material:||Stainless Steel, Cold-rolled Plate||Start Port:||Guangzhou, Shenzhen|
|Warranty:||2 Years||Lock:||Electromagnetic Interlock|
|Size:||Customized Size||Filter:||Hepa Filter H13 / H14|

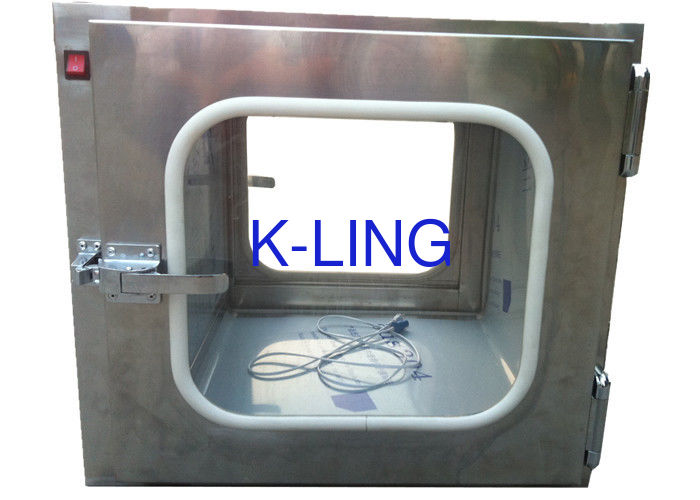

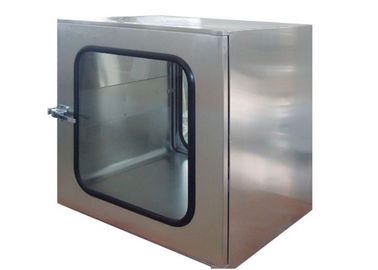

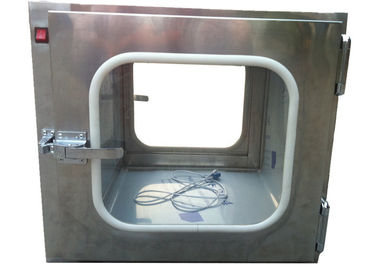

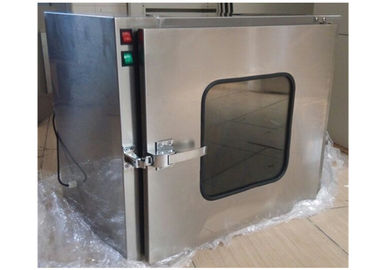

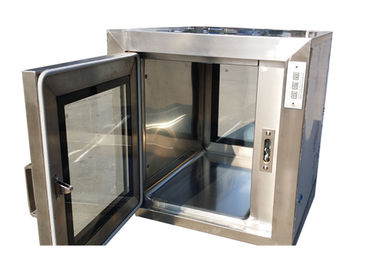

Customized Stainless Steel 201 Static Cleanroom Pass Thru Box For Biological Engineering
CUSTOMIZED DESIGN IS AVAILABLE
In pharmaceuticals manufacturing facilities,
it is essential to minimise man/material movement and avoid crossing contamination between different classified areas to achieve desired classification and to maintain intergrity of products and processes.
Pass box is designed to allow material transfer without much personnel movement. It also aids controlling ingress of particulate contaminations into clean room and between different classified areas.
Static Pass Box
* Double walled construction
* Electro-magnetic interlocking view panels
* Mechanical/Pneumatic interlocking
Dynamic Pass Box
* Two stages filtration
* Statically & dynamically balanced motor-blower
* Electro-megnetic interlocking
Mechanical interlock electrical locking
pass box for cleanroom
As an auxiliary device of a clean room, pass box is mainly used to deliver small objects between clean area and clean area, unclean area and clean area. In order to reduce door’s opening times of clean room, it is suggested to reduce the pollution of the clean area.
Purifying transfer window may transfer materials, equipment and tools under the protection of Class A environment. Materials, equipments or tools which have been purified may be delivered to the aseptic area, mainly from Class C area to Class B area. As to user’s demand, the purifying transfer window can be equipped with UV germicidal lamp or ozone generator sterilization system.
External size (mm)
Work zone (mm)
|Nozzle||4 PCS||4PCS||6 PCS|
1: Entirety Sus304.(T=1.2/1.0mm)
2: Entirety sus201. (T=1.2/1.0mm)
3:External is steel with power coated, Internal is SUS304(T=1.2/1.0mm)
4: External is steel with power coated. Internal is SUS201(T=1.2/1.0mm)
|Optional accessories||1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller|
|Power supply||0.75KW 380V/50HZ|
|packing size (mm)||1050x780x1600mm||1100x880x1700mm||1240x1030x1850mm|
|Packing material||Standard Export Poly wood Packing(Fumigant free material)|
Our equipment is warranty for 2 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
