| Name: | CLASS 10000 Air Shower | Material: | Stainless Steel |
|---|---|---|---|
| Air Speed: | >25m/S | Purification Rank: | 10000 |
| Packing: | Polywood Packing | ||
| High Light: | pharmaceutical clean room,semiconductor clean room |
||

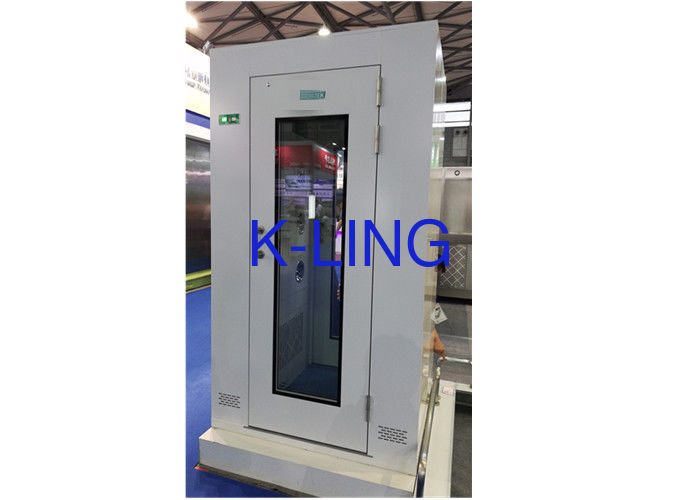

Industrial Class 10000 Clean Room Air Shower / Booth For 1-6 Person
CUSTOMIZED DESIGN IS AVAILABLE
General Trade Information:
Brand: KELING
Material: inside and outside is stainless steel201 (t=1.2mm)
OEM /ODM: Yes
Certificated: CE and Rosh
Start port: Guangzhou,Shenzhen
Delivery time: 8 working days after we get the deposit.
MOQ: 1 set
Country of Original: China
Supply ability: 30 sets/month
Payment term: T/T , L/C , Western union ,
Products Specifications:
| MODEL | KEL-AS1400V1 | KEL-AS1400V2 | KEL-AS1400V3 | |
|
External size (mm) (WXDXH) |
1400x1000x2180 | 1400x2000x2180 | 1400x3000x2180 | |
|
Work zone (mm) (WXDXH) |
790x930x1910 | 790x1930x1910 | 790x2930x1910 | |
| Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
|
Material (Optional) |
1:Entirety Sus304.(T=1.0/1.2/1.5mm) 2:Entirety sus201. (T=1.0/1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304 4: External is steel with power coated. Internal is SUS201 |
|||
| Control system |
1: Control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable) 3: Infrared ray inductor for inside personal shower automatic. 4: Vertical top side blowing with Human voice prompt system. 5: With CE remark. |
|||
| The power of fan |
380V/50HZ/1.1KW (1 set) |
380V/50HZ/1.1KW (2 sets) |
380V/50HZ/1.1KW (1sets) |
|
| Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
| Fan run (r/min) | 2800 | 2800 | 2800 | |
| Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
| Wind speed(m/s) | >25m/s | |||
| Noise level(dB) | <75dB | |||
| HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
| Efficiency (%) | 99.995% @ 0.3um Mini-pleats HEPA air filter | |||
| Air velocity | 1000m3/h | |||
| Initial resistance(pa) | <220pa | |||
| Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
| Efficiency(%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
| G3 | G3 | G3 | ||
| resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
| parameter | Power supply | 380v/50Hz | 380v/50Hz | 380v/50Hz |
| Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
| packing size (mm) | 1500x1200x2250 | 1500x2200x2250 | 1500x3200x2250 | |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
| Weigh | 320kgs | 650kgs | 960kgs | |
Warranty:
Our equipment is warranty for 2 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
