Product Details:
Payment & Shipping Terms:
|
| NAME: | GMP Air Shower | Material: | SUS304,201 |
|---|---|---|---|
| Nozzle: | 16 Pcs | Air Speed: | More Than 25m/s |
| Fan: | 0.75KW, 2 PCS | Packing: | Polywood Packing |
| High Light: | air shower system,electronics clean room |
||

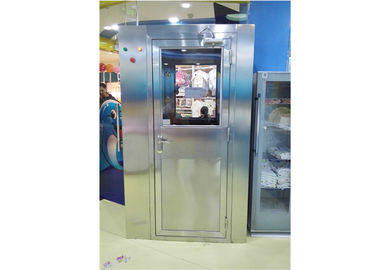

GMP Pharmaceutical Air Shower Class 100 Clean Room Equipments
Air shower cleanroom for Pharmaceutical Manufacturing Industry
Air shower cleanrom gives the pharmaceutical industry an effective solution for controlling contamination and maintaining a sterile environment. The tunnel's automatic air shower system removes any dust or particles that might be carried by people or products as they enter or exit the clean room, preventing cross-contamination.
CUSTOMIZED DESIGN IS AVAILABLE
General Trade Information:
Brand: KELING
Model number: KEL-AS1300P1
Material: inside and outside is stainless steel304 (t=1.0mm)
OEM /ODM: Yes
Certificated: CE and Rosh
Start port: Guangzhou,Shenzhen
Delivery time: 8 working days after we get the deposit.
MOQ: 1 set
Country of Original: China
Supply ability: 30 sets/one month
Payment term: T/T , L/C , Western union.
Application: Worker in Clean room
Product Features:
Vertical air flow in top side
External Material: stainless steel304 (t=1.0) Or steel with milk color power coated
Inside Material: stainless steel304 (t=1.0)
External size: 1400*1000*2180mm
Internal size: 790*930*1910mm
Sus nozzle: 16pcs, 32pcs, 48pcs.
Blowing way: one side (top), three sides.
Air speed: more than 25m/s
Door: Electric Interlocking in both side.
Products Specification:
| MODEL | KEL-AS1400V1 | KEL-AS1400V2 | KEL-AS1400V3 | |
|
External size (mm) (WXDXH) |
1400x1000x2180 | 1400x2000x2180 | 1400x3000x2180 | |
|
Work zone (mm) (WXDXH) |
790x930x1910 | 790x1930x1910 | 790x2930x1910 | |
| Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
|
Material (Option) |
1:Entirety Sus304.(T=1.0/1.2/1.5mm) 2:Entirety sus201. (T=1.0/1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304 4: External is steel with power coated. Internal is SUS201 |
|||
| Control system |
1: Control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable) 3: Infrared ray inductor for inside personal shower automatic. 4: Vertical top side blowing with Human voice prompt system. 5: with CE remark. |
|||
| The power of fan |
380V/50HZ/1.1KW (1 set) |
380V/50HZ/1.1KW (2 sets) |
380V/50HZ/1.1KW (1sets) |
|
| Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
| Fan run (r/min) | 2800 | 2800 | 2800 | |
| Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
| Wind speed(m/s) | >25m/s | |||
| Noise level(dB) | <75dB | |||
| HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
| Efficiency (%) | 99.995% @ 0.3um Mini-pleats HEPA air filter | |||
| Air velocity | 1000m3/h | |||
| Initial resistance(pa) | <220pa | |||
| Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
| Efficiency(%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
| G3 | G3 | G3 | ||
| resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
| parameter | Power supply | 380v/50Hz | 380v/50Hz | 380v/50Hz |
| Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
| packing size (mm) | 1500x1200x2250 | 1500x2200x2250 | 1500x3200x2250 | |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
| Weigh | 320kgs | 650kgs | 960kgs | |
Draw:
Illustrate:
1: Control board 2: Infrared Indicator 3: Per-filter
4: Power Indicator 5: Emergency switch 6: Working light
7: HEPA air filter (H13 99.995%@0.3um) 8: Door 9: Fan
10: Door Closer 11: Nozzle 12: Purification light
