|Size:||Customized||Material:||Sus 304/ Sus 316L|
|Design:||Free Design Drawing||Cleanliness:||Class 100|
SUS Clean Room Equipments,
SUS Laminar Flow Dress Cabinet,
SUS clean room cabinet

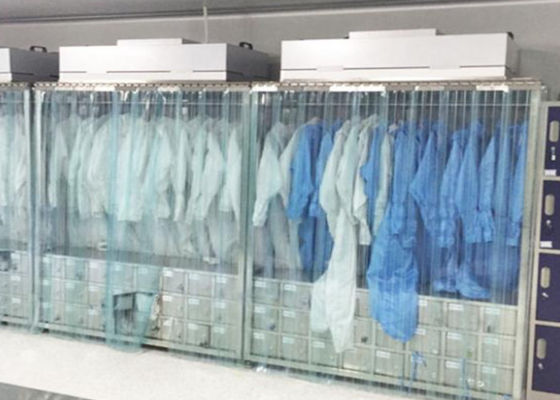

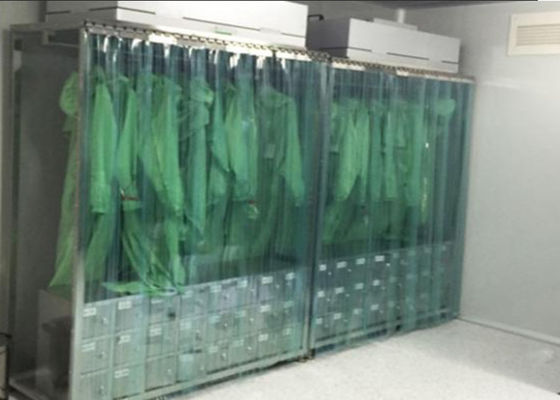

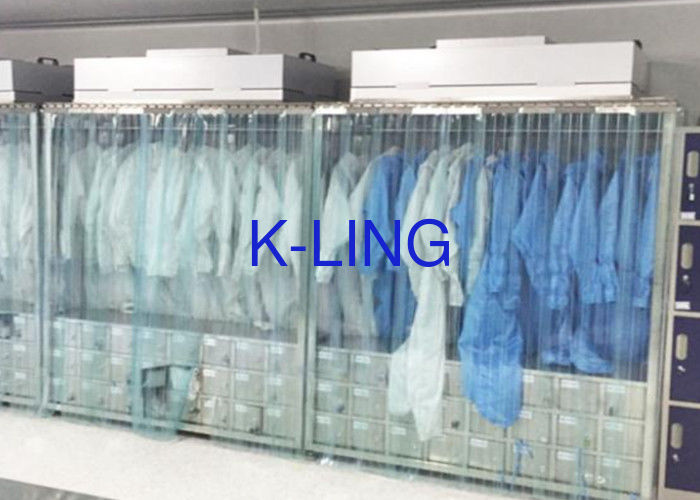

SUS Clean Room Equipments Garment Cabinet/ Laminar Flow Dress Cabinet
Laminar Flow dress cabinet is designed to maintain the cleanliness integrity of clean room garments during storage.
It can effectively purge and remove particles such as lint and dust ingress on the clothing fabric.
Clean Stocker features a quiet, direct drive, variable- speed blower mounted above a HEPA filter rated 99.99% 0.3um, and delivers a continuous downstream that block the inrush of contaminants into the storage area, as a result, helps garments virtually free of particulates.
Clean Stocker is located at the bottom of the storage area and discharges air along with any contaminants that may have entered the stocker.
A variety of configurations and materials are available to suit particular application requirements. Such as garment storage only, with adjustable shelves, or stainless steel cabinet without transparent window models.
Clean Stockers are perfect for the range of applications include pharmaceutical, chemical biotech, nanotechnology, LCD, Wafer fabrication, Semiconductor, food processing industries, among others.
1. HEPA filter, Class 100
2. Main body : 304 stainless steel. Soft wall: PVC anti-static dust-proof curtain. Door can be also made by Glass(optional)
3. All cabinet components are compatible. Eliminating 99.9% of surface bacteria within 24 hours of exposure.
4. Customize according to customers’ different requirements.
After sales service:
12 months of free warranty and life time maintanence.
Quick response to customer's feedback within one working day.
Diverse ways to provide 24 hours technical support.
|Work area size(W*D*H)mm||1200*700*1750||1400*700*1750||1700*700*1750|
|UV lamp No.||56cm*1pc||56cm*1pc||56cm*1pc|
|Main body material||304 Stainless Steel|
|Door material||PVC anti-static dustproof curtain/glass|
|Clean level||Class 100|
|Average air velocity||0.35~0.5m/s|
|Bacteria Falling Number||0.5pc/dish (Φ90mmpetri dish)|
|Vibration Half Peak||≤5um|
|Power supply||220/120V 50Hz/60Hz|
