Payment & Shipping Terms:
|Name:||Cleanroom Pass Box||Internal Size ( W*D*H ):||700X500X599mm|
|External Size ( W*D*H ):||500X500X500mm||Interlock:||Electronic Or Mechanical Interlocking|
|Material:||Stainless Steel 304 / 201 Or Steel With Power Coated||Power Supplier:||220V / 50HZ|
clean room pass through box,
Pass Thru Box

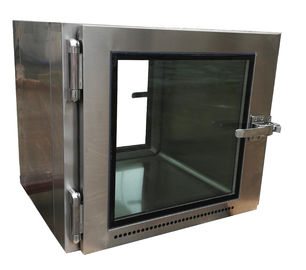

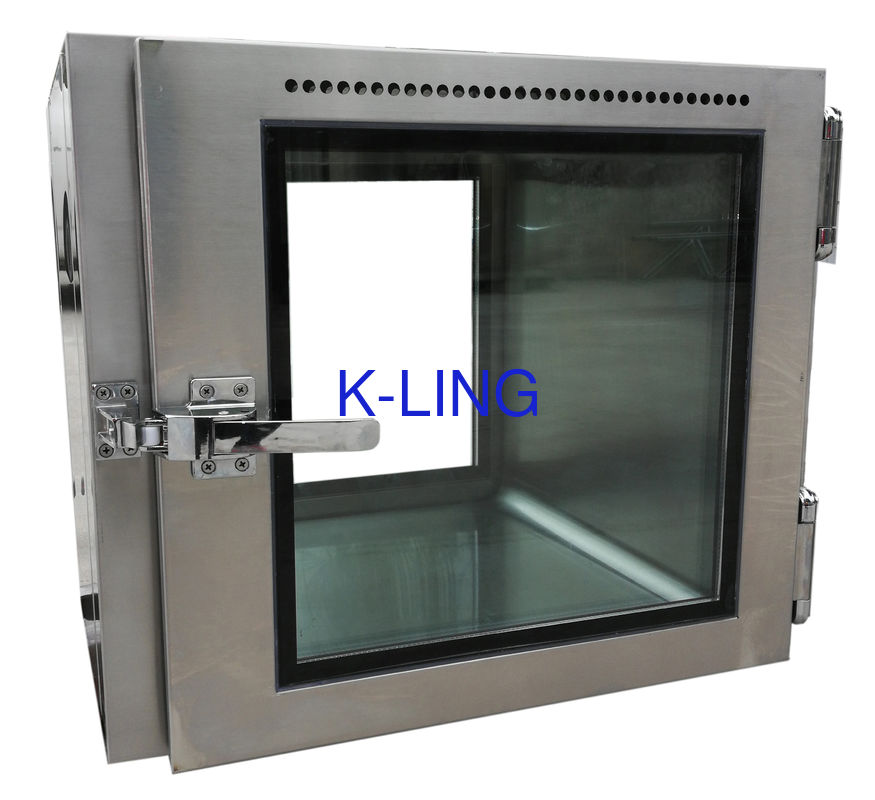

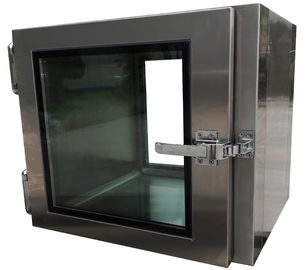

Customize Stainless Steel Cleanroom Pass Box With Electronic Or Mechanical Interlocking
Cleanroom pass box is manufactured for the most demanding controlled environment applications . It is a matched equipment of clean booth and clean factory , which mainly used to pass small articles between contaminated area and un-infection area or low cleanliness area and high cleanliness zone . It can decrease the operating personal movement and reduce times of opening door , prevent the air convection between different rooms and minimize the entry of the dust of the outer region .
Cleanroom pass box is widely used in microelectronics , laboratory , national defense , precise instrument and gauges , LCD , food processing , bio-pharmaceuticals , opto-electronics field .
Operation features :
1. All components are designed for maximum chemical resistance and enhanced durability for a long service life. The surface material of clean room pass box can be chose stainless steel or steel with power coated .
2. Electronic or mechanical interlocking are reliable , which shall reduce contamination from the low cleanliness area and keep the cleanroom clean .
3. Cleanroom pass box is constructed of stainless steel inside in circular arc form . The arc design in the inner circumference is to ensure a seamless connection line , making the work zone in cleanroom pass box easy to clean and endurable .
4. Double - layer glass has a smooth , glossy surface , which is both aesthetical and safe for users .
5. The internal bottom is optional to adopt to the Stainless steel plate or non-power drum .
6. Cleanroom pass box shall be installed in the wall or supported by bracket .
7. Special sealing trip is installed to ensure air tightness .
|Model||KEL - PB500||KEL - PB600||KEL - PB750|
|External size ( W * D * H ) ㎜||660X500X590||760X600X690||910X750X840|
|Internal size ( W * D * H ) ㎜||500X500X500||600X600X600||750X750X750|
1. Entirely is stainless steel ( 304 / 201 )
2. External is steel with power coated , Internal is SUS304
3. External is steel with power coated , Internal is SUS201
|Thickness||Material thickness 1.0 / 1.2 / 1.5 ㎜|
|Toughened Glass window||Double layer vacuum glass|
|Interlock||Mechanical or electronic interlocking|
|Gasket||PU foam gasket|
|Four corner||Four sides are inner arc with out any blind angle|
|Power||220V / 50HZ|
1. Interphone 2. UV light 3. Roller
