Class 100000 Dust Free Softwall Clean Room With FFU

Class 100000 Dust Free Softwall Clean Room With FFU
Class 100000 Dust Free Softwall Clean Room With FFU Class 100000 Dust Free Softwall Clean Room With FFU

Large Image :  Class 100000 Dust Free Softwall Clean Room With FFU

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-SCB series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Name: Softwall Clean Room/ Modular Cleanroom/ Clean Room/ Clean Booth Frame: SUS 304/ Aluminum Profile
Cleanness: Class 100-100000 Door: Air Shower Door/ Steel Airtight Door/ PVC Door
Corner Treatment: Aluminum Profile Original: GuangDong China
High Light:

Class 100000 Softwall Clean Room

,

Dust Free Softwall Clean Room

,

FFU Air Shower Tunnel

Customized Dust-Free Pharmaceutical Clean Room/ Softwall Clean Room with FFU





Introduction



Softwall clean room is a special designed room to exclude the particles in the air, bacteria and other harmful air pollutants, and the indoor temperature, cleanliness, interior pressure, air velocity and air distribution, noise, vibration, and lighting, static control within the scope of a certain demand. That is no matter how the outside air conditions change, its indoor all can maintain the original set requirements of cleanliness, temperature and humidity and pressure performance characteristic.





Feature



1. This is a clean booth full service construction under GMP request. It could be customized. Turnkey project.

2. Modular design, easy install and maintenance;

3. Compact structure and elegant appearance;

4. One step service and customized





Parameter



Parameter Softwall Clean Booth(PVC) Hardwall Clean Booth(Toughened glass,color steel panel)
Cleanliness From Class 100 to Class 100,000
External Dimension As per requirement
FFU Dimension 2*2/2*4/4*4
Cabinet Material Stainless Steel
Power source 110V/60hz/av/dc, 220V/60HZ/AV/DC
HEPA Filter H14 Hepa filter
Frame Material Stainless Steel
Wall Material Anti-static soft PVC wall 106~109Ω Anti-static acrylic 106~109Ω
Lighting Lamps Available in LED and T5
Air condition As per requirement Available in constant temperature air conditioner/constant temperature and humidity conditioner
Class Level Model Inner dimension Number of Air volume(m3/h)
W * D * H (mm) FFU
Class100 KEL-SCB6 * 8 2000 * 3000 * 2200 6 6600
KEL-SCB 8 * 12 2440 * 3660 * 2200 12 13200
KEL-SCB8 * 16 2450 * 4880 * 2200 16 17600
KEL-SCB8 * 20 2440 * 6100 * 2200 20 22000
Class 1000 KEL-SCB6 * 8 2000 * 3000 * 2200 2 2200
KEL-SCB8 * 16 2440 * 4880 * 2200 4 4400
KEL-SCB12 * 16 3660 * 4880 * 2200 6 6600
KEL-SCB20 * 24 6100 * 7300 * 2200 12 13200
Class 10000 KEL-SCB6 * 8 2000 * 3000 * 2200 1 1100
KEL-SCB 8 * 16 2440 * 4880 * 2200 2 2200
KEL-SCB 12 * 16 3660 * 4880 * 2200 4 4400
KEL-SCB 20 * 24 6100 * 7300 * 2200 8 8800





Case display

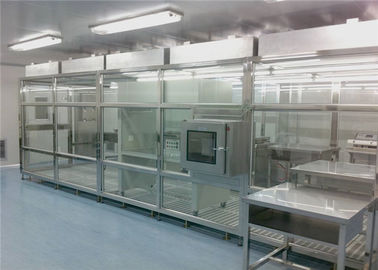

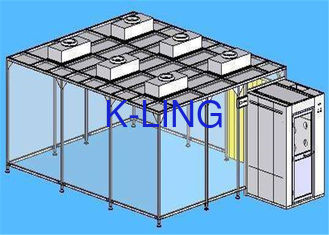

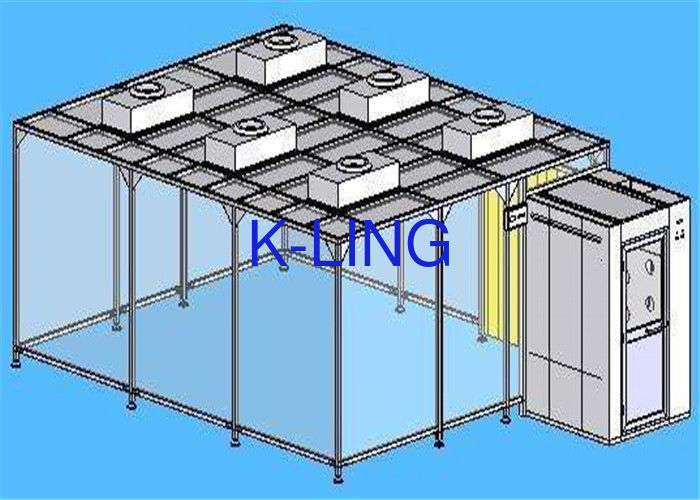

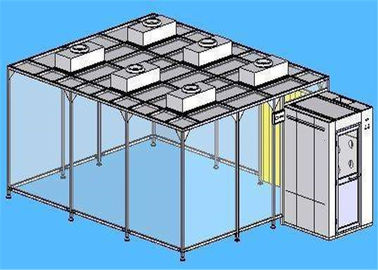

Class 100000 Dust Free Softwall Clean Room With FFU 0

Class 100000 Dust Free Softwall Clean Room With FFU 1
